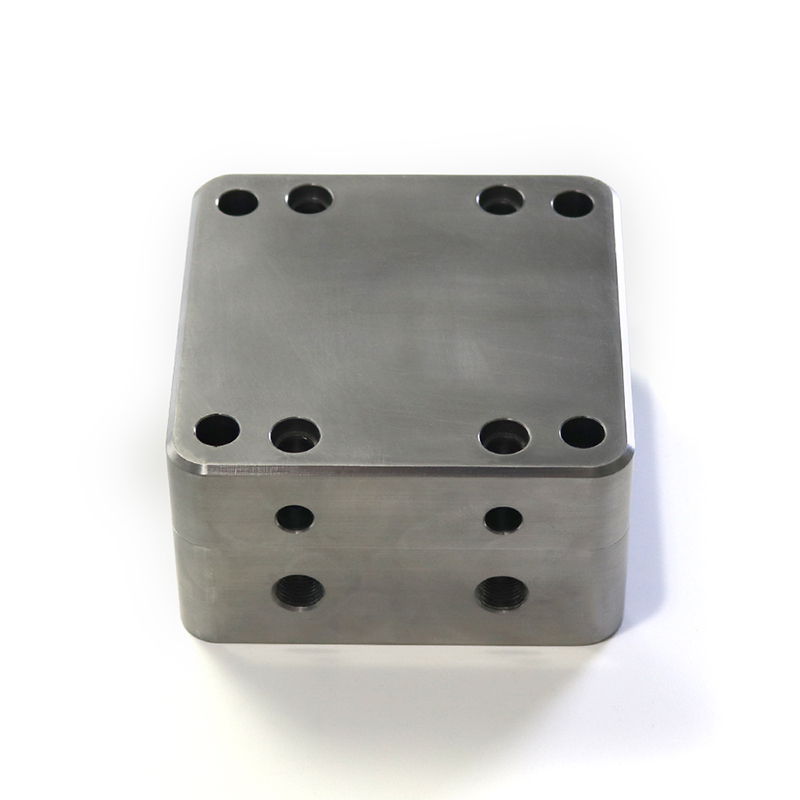

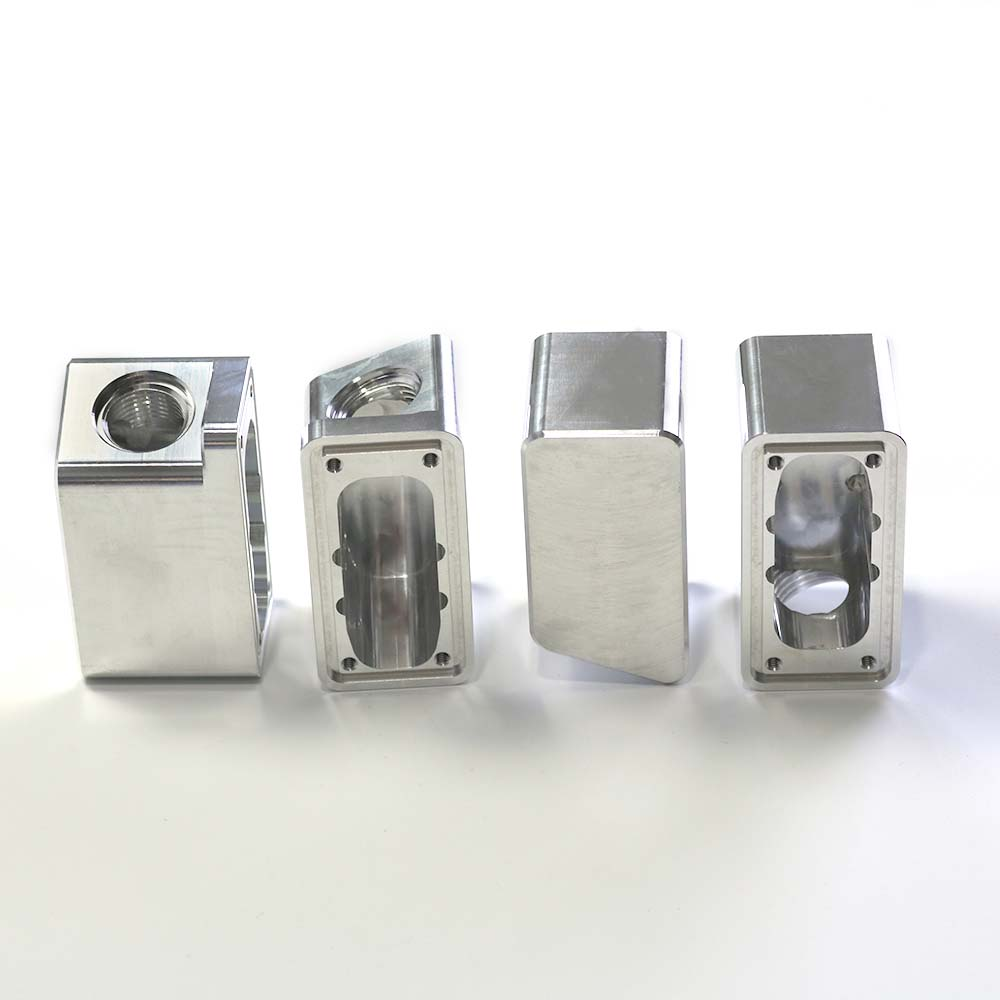

High-quality precision custom metal optical fixtures

Product Overview

In the field of precision optics and engineering, metal optical clamps are essential tools for securing optical components with unparalleled stability and accuracy. Whether used in research labs, industrial setups, or advanced medical equipment, these clamps are critical for ensuring precise alignment and reducing vibration in delicate systems. A factory-customized approach to manufacturing metal optical clamps provides superior functionality, durability, and tailored solutions to meet specific project needs.

This article highlights the benefits of factory customization, available design options, and why metal optical clamps are the best choice for precision applications.

 What Are Metal Optical Clamps?

A metal optical clamp is a mechanical component used to securely hold and position optical devices like lenses, prisms, mirrors, or laser modules. These clamps are designed to provide rigidity while allowing fine adjustments, ensuring that optical systems operate with optimal performance and accuracy.

Metal optical clamps are widely utilized in applications where precision is paramount, including optical benches, spectrometers, and high-powered laser assemblies.

Advantages of Factory-Customized Metal Optical Clamps

1.Unmatched Precision

Custom clamps are manufactured with tight tolerances to guarantee a secure fit and exact positioning of optical components. This precision minimizes system misalignments, enhancing performance.

2.Tailored Solutions

With factory customization, you can design clamps to match specific dimensions, configurations, and functionalities. This ensures compatibility with unique setups or specialized optical devices.

3.Durable Materials

Factories use robust metals like stainless steel, aluminum, and brass, which offer superior strength, corrosion resistance, and thermal stability.

4.Enhanced Adjustability

Custom clamps can be equipped with advanced features like fine-tuning knobs, rotational axes, or quick-release mechanisms for precise and efficient operation.

5.Professional Finishes

From anodized aluminum for a sleek look to polished stainless steel for durability, factory-customized clamps offer aesthetic and protective finishes that match their high-quality performance.

6.Cost-Effective Manufacturing

Bulk production by a factory ensures competitive pricing while maintaining exceptional quality, making customization accessible and efficient.

Applications of Metal Optical Clamps

1.Scientific Research

Metal optical clamps are indispensable in laboratory setups, including laser alignment systems, spectroscopy experiments, and interferometers.

2.Medical Equipment

Precision clamps are widely used in medical imaging systems such as microscopes and endoscopes to secure optical components for accurate diagnosis and treatment.

3.Industrial Manufacturing

These clamps are critical in assembly lines and production equipment for aligning optical sensors and laser tools in industrial environments.

4.Telecommunications

Metal optical clamps are utilized in fiber optics and laser communication systems to maintain stable alignment for optimal signal transmission.

5.Aerospace and Defense

In aerospace and military applications, these clamps provide robust support for optical systems used in satellites, targeting devices, and telescopes.

Customization Options for Metal Optical Clamps

1.Material Choices

• · Stainless Steel: Ideal for high-strength and corrosion-resistant applications.
• · Aluminum: Lightweight and versatile, perfect for portable systems.
• · Brass: Offers excellent thermal conductivity and a premium appearance.

2.Adjustment Features

• · Single-Axis or Multi-Axis Movement: Allows precise alignment adjustments.
• · Rotational Mechanisms: Facilitates angular positioning for complex setups.
• · Locking Systems: Ensures stability after alignment.

3.Surface Finishes

• · Anodized Aluminum: Increases durability and adds a professional look.
• · Polished Steel: Resists corrosion and maintains a sleek finish.
• · Powder Coating: Provides additional protection and customization options.

4.Custom Sizes and Shapes

Factories can design clamps to fit unique optical components or system layouts.

5.Branding and Engraving

Customization allows for the addition of logos, model numbers, or other branding elements to create a professional product.

Steps to Start Customizing Metal Optical Clamps

1.Define Your Needs

Specify the material, dimensions, and functionalities required for your project.

2.Partner with a Trusted Manufacturer

Collaborate with a factory experienced in producing precision optical components.

3.Request Prototypes

Test prototypes to confirm design accuracy and functionality before proceeding to full production.

4.Finalize Production

Work with the factory to set timelines, order quantities, and delivery schedules.

Conclusion

Factory-customized metal optical clamps offer the perfect balance of precision, durability, and adaptability for a wide range of applications. From scientific research to industrial manufacturing and beyond, these clamps provide reliable solutions tailored to your exact needs.

By choosing a trusted factory partner, you gain access to advanced manufacturing techniques, high-quality materials, and personalized designs that enhance the performance of your optical systems. Invest in custom metal optical clamps today to elevate the accuracy and reliability of your projects!

FAQ

Q:What customization options do you offer for optical fixtures?

A:We provide fully customizable solutions to meet your specific requirements, including:

• · Material selection: Choose from various metals like aluminum, stainless steel, brass, and titanium.
• · Surface treatments: Options include anodizing, powder coating, and plating for durability and aesthetics.
• · Size and dimensions: Precise manufacturing based on your technical specifications.
• · Threading and hole configurations: For mounting and adjustment needs.
• · Special features: Incorporate anti-vibration, quick-release mechanisms, or other functional elements.

Q:Do you offer precision machining for intricate designs?

A:Yes, we specialize in precision CNC machining, allowing us to produce complex and intricate designs with tolerances as tight as ±0.01mm. This ensures optimal performance for your optical systems.

Q:How long does it take to manufacture custom optical fixtures?

A:The production timeline varies depending on the complexity and quantity of the order:

• · Design and prototyping: 7-14 business days
• · Mass production: 2-6 weeks

Q:Do you offer quality assurance?

A:Yes, we follow stringent quality control processes, including:

• · Dimensional inspections
• · Material testing
• · Performance validation

We ensure that every product meets your exact specifications and industry standards.
